dsac::tree::LinkedBinaryTree< E > Class Template Reference

#include <linked_binary_tree.h>

Inheritance diagram for dsac::tree::LinkedBinaryTree< E >:

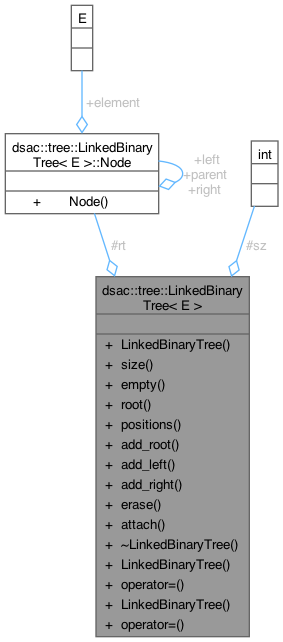

Collaboration diagram for dsac::tree::LinkedBinaryTree< E >:

Data Structures
class	Node
class	Position

Public Member Functions
	LinkedBinaryTree ()
	Constructs a tree storing zero elements.
int	size () const
	Returns the number of elements stored in the tree.
bool	empty () const
	Returns true if the tree does not have any elements.
Position	root () const
	Returns a Position for the root (a null Position, if an empty tree)
std::vector< Position >	positions () const
	Returns an inorder sequence of positions.
void	add_root (const E &e=E())
	Creates a root for an empty tree, storing e as the element; should never be called on non-empty tree.
void	add_left (Position p, const E &e)
void	add_right (Position p, const E &e)
void	erase (Position p)
void	attach (Position p, LinkedBinaryTree &left, LinkedBinaryTree &right)
	~LinkedBinaryTree ()
	LinkedBinaryTree (const LinkedBinaryTree &other)
LinkedBinaryTree &	operator= (const LinkedBinaryTree &other)
	LinkedBinaryTree (LinkedBinaryTree &&other)
LinkedBinaryTree &	operator= (LinkedBinaryTree &&other)

Protected Attributes
Node *	rt {nullptr}
int	sz {0}

Constructor & Destructor Documentation

LinkedBinaryTree() [1/3]

template<typename E >

dsac::tree::LinkedBinaryTree< E >::LinkedBinaryTree ( )

inline

Constructs a tree storing zero elements.

~LinkedBinaryTree()

template<typename E >

dsac::tree::LinkedBinaryTree< E >::~LinkedBinaryTree ( )

inline

LinkedBinaryTree() [2/3]

template<typename E >

dsac::tree::LinkedBinaryTree< E >::LinkedBinaryTree ( const LinkedBinaryTree< E > &  other )

inline

LinkedBinaryTree() [3/3]

template<typename E >

dsac::tree::LinkedBinaryTree< E >::LinkedBinaryTree ( LinkedBinaryTree< E > &&  other )

inline

Member Function Documentation

add_left()

template<typename E >

void dsac::tree::LinkedBinaryTree< E >::add_left ( Position  p, const E &  e  )

inline

Creates a new node storing element e, and links the new node as the left child of position p. Should not be called if p already has a (non-null) left child.

add_right()

template<typename E >

void dsac::tree::LinkedBinaryTree< E >::add_right ( Position  p, const E &  e  )

inline

Creates a new node storing element e, and links the new node as the right child of position p. Should not be called if p already has a (non-null) right child.

add_root()

template<typename E >

void dsac::tree::LinkedBinaryTree< E >::add_root ( const E &  e = E() )

inline

Creates a root for an empty tree, storing e as the element; should never be called on non-empty tree.

attach()

template<typename E >

void dsac::tree::LinkedBinaryTree< E >::attach ( Position  p, LinkedBinaryTree< E > &  left, LinkedBinaryTree< E > &  right  )

inline

Attaches the internal structures of trees left and right and subtrees of leaf p, and resets left and right to empty trees. Should not be called on non-leaf p.

empty()

template<typename E >

bool dsac::tree::LinkedBinaryTree< E >::empty ( ) const

inline

Returns true if the tree does not have any elements.

erase()

template<typename E >

void dsac::tree::LinkedBinaryTree< E >::erase ( Position  p )

inline

Removes the node (and element) at position p, replacing the node with its one child, if any. Should not be called on a node with two children.

operator=() [1/2]

template<typename E >

LinkedBinaryTree & dsac::tree::LinkedBinaryTree< E >::operator= ( const LinkedBinaryTree< E > &  other )

inline

operator=() [2/2]

template<typename E >

LinkedBinaryTree & dsac::tree::LinkedBinaryTree< E >::operator= ( LinkedBinaryTree< E > &&  other )

inline

positions()

template<typename E >

std::vector< Position > dsac::tree::LinkedBinaryTree< E >::positions ( ) const

inline

Returns an inorder sequence of positions.

Here is the call graph for this function:

root()

template<typename E >

Position dsac::tree::LinkedBinaryTree< E >::root ( ) const

inline

Returns a Position for the root (a null Position, if an empty tree)

size()

template<typename E >

int dsac::tree::LinkedBinaryTree< E >::size ( ) const

inline

Returns the number of elements stored in the tree.

Field Documentation

rt

template<typename E >

Node* dsac::tree::LinkedBinaryTree< E >::rt {nullptr}

protected

sz

template<typename E >

int dsac::tree::LinkedBinaryTree< E >::sz {0}

protected

---

The documentation for this class was generated from the following file:

• dsac/tree/linked_binary_tree.h
